Hardware
C кожзаменительAmlogic S805 Qual Core Coretex-A5 Up to 1.5GHz
G кожзаменительQual Core Mali-450 Up to 400MHz
MemoryDDRIII 1GB
Nand FlashNand Flash 8GB (Optional 4г B,8GB,16GB,32GB)
Front PanelIR Infra Remote control
red LED Standby,green LED Run
Rear PanelTuner RF input connectorIEC-162-2( Female)
Tuner RF Loop through connectorIEC-162-2( Male)
2*USB 2.0 Embedded two Host
HDMI 1.4b
Ethernet 10/100M ,Standard RJ-45
RCA CVBS AL AR Connector x1
1*SD CARD
Power input 5V/2A
Demodulation
Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency48~866MHZ
Bandwidth6MHz,7MHz,8MHz
ConstellationQPSK 16-QAM 64-QAM and 256-QAM
FEC1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval 1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode2K/ 8K/32K
SupportSupport Single and multiple PLPS
Input level -83 - -5dBm
System

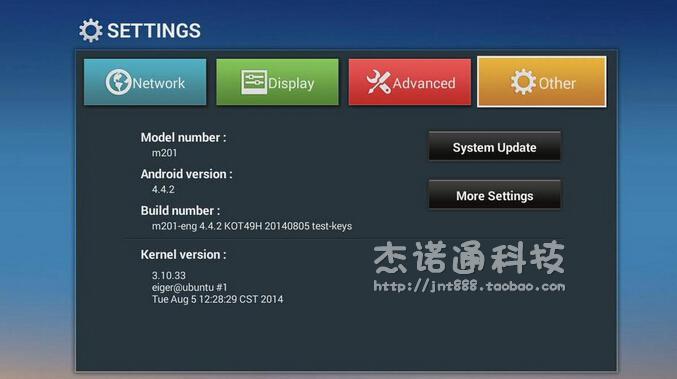

Operating SystemAndroid 4.4.2 OS
Video PlayerSupports H.265, H.264, VC-1, MPEG-1/2/4, RealVideo, DivX / Xvid, VP6, AVC video encoding, etc.
Audio PlayerSupports MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV and other audio formats
PictureJPEG,PNG,BMP,GIF,JPG
Adobe FlashAdobe Flash 10.1 support or above
LanguageChinese , English ,Germany ,Japanese, Korea etc. 24 languages
KODISupport KODI 14.2
BlutoothBluetooth 4.0
WiFiSupport 802.11 b/g /n
3G dongleSupport most external 3G USB dongle

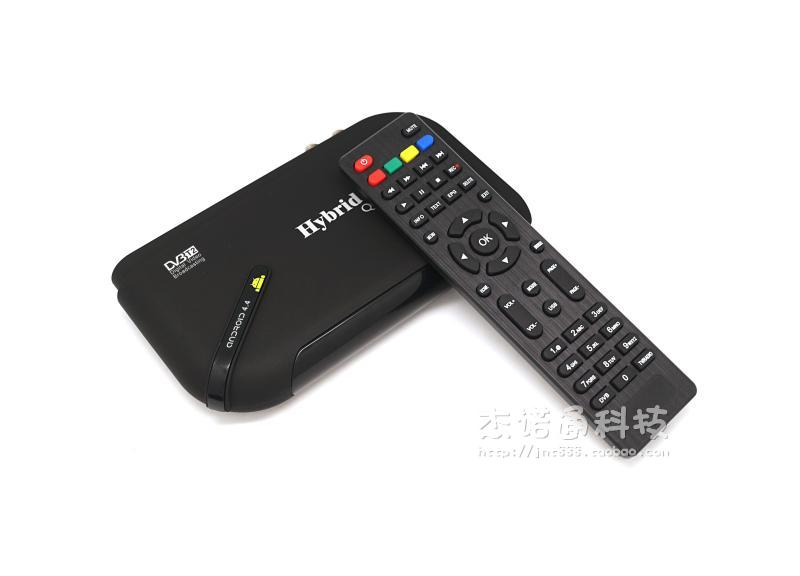

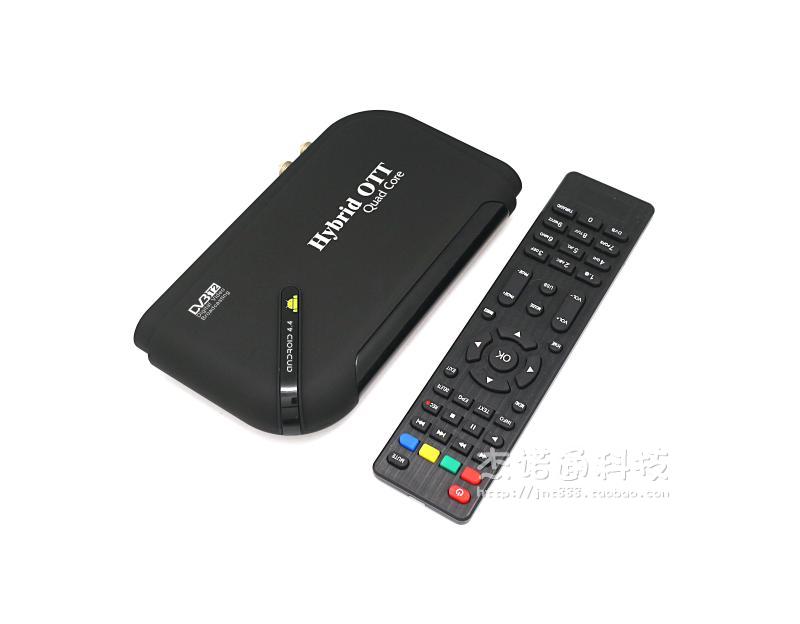

RemoteSupport Infra Remote control
Appliactions
OnlineBrowse all video websites ,support Netflix ,Hulu ,Flixster , youtube etc

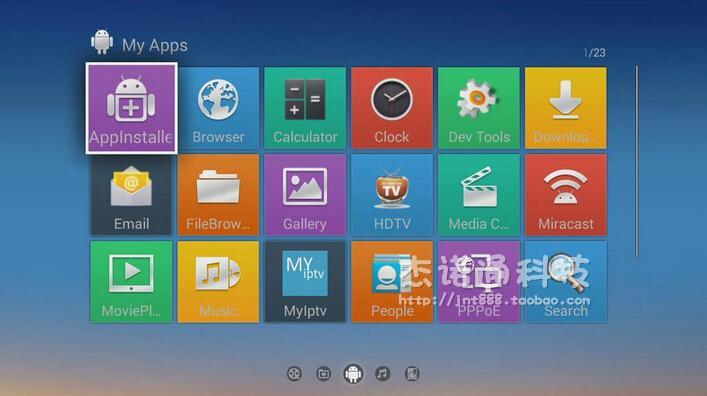

AppsApps download freely form android market ,amazon appstore etc
MediumLocal Media playback,support HDD, U disck ,SD card
Talk onlineSupport SKYPE video call ,MSN , facebook ,twitter ,QQ etc
OthersSupport wifi hotpiont ,could be as a wireless router
Support DLNA, AirPlay, Google TV Remote etc
пакет Фитинги: 1 * AV-кабель, 1 * HDMI-кабель, 1 * пульт дистанционного управления, 1 * адаптер питания, 1 * руководство на английском языке
