TBS 6904 DVB-S2 Four Tuner Input PCIe высокая Оформление слово Телевизор

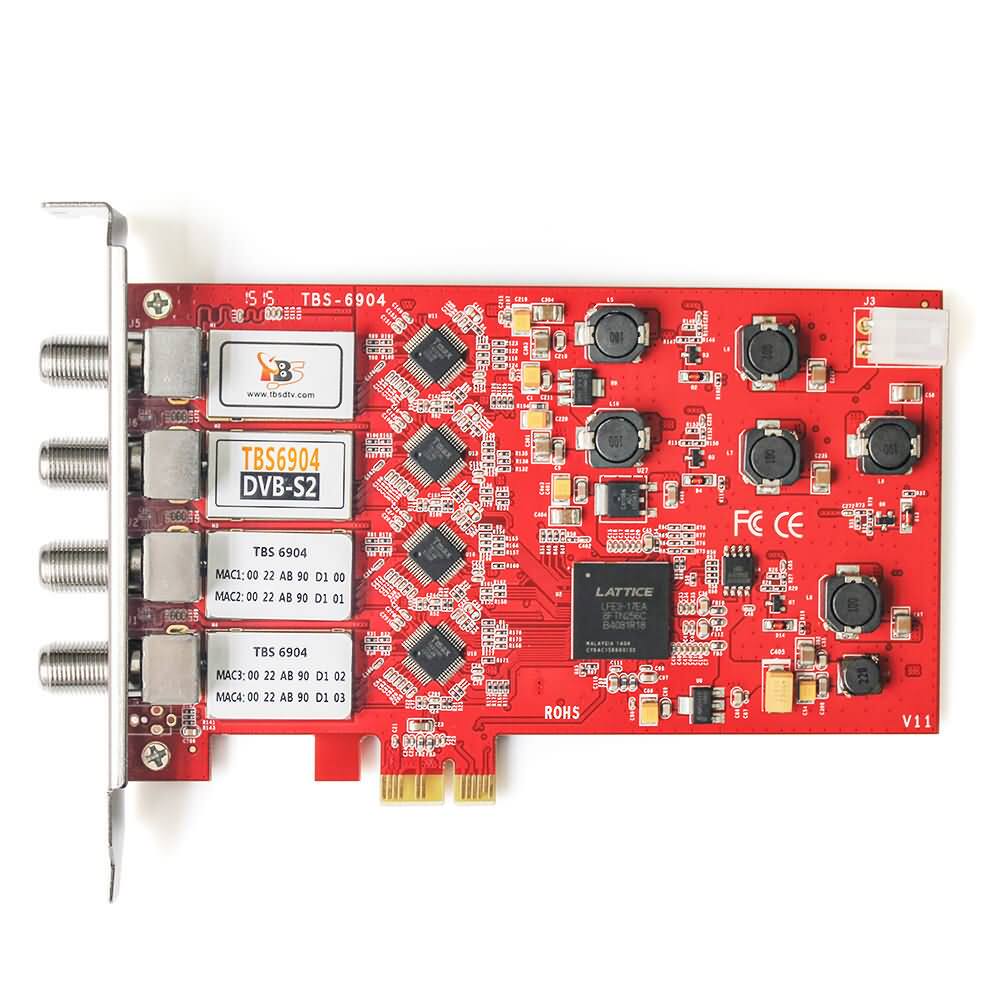

TBS6904 is a PCI Express interface digital satellite TV Tuner card with four tuners for watching and recording FTA (Free to Air) satellite TV on PC. The four tuners allow you to watch TV channel from one transponder/satellite while recording three other channels from different transponders/satellites in the same time. TBS team has developed both Windows BDA driver and Linux driver up to the latest kernel for this quad tuner card Tested on. It’s compatible with Windows 7 Media Center and popular software like MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV.
TBS6904 PCI-E DVB-S2 Four Tuner TV card is designed to fulfill the needs of watching/recording multiple satellite TV channels on PC simultaneously. With this quad tuner TV card, you can watch one channel and record three other channels at the same time. Even more if you want to make full use of the recording power of TBS6905, you may record four wholeTS (Transponder Stream), one of which could contains maximum ten, twelve SD or HD TV channels into your PC hard disk, in other words, you will be able to record up to 48 channels with TBS6905 in the same time. This feature contributes a lot especially when you are building up HTPC or IPTV streaming server.
You can use it to watch any free to air satellite TV programs in your region including Freesat HD if you are located in the UK. By using appropriate software, e.g. MediaPortal and its’ plugins, you can stream satellite TV contents to your i-Phone, i-Pad or i-Pod.
Введение функции:
DVB-S2/S quad tuner
Watch& record satellite TV/ radio programs on PC
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
Приложения:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Характеристики продукта:
Frequency range: 950~2150 MHz
Signal Level: -69~-23dBm
Symbol rate: 1~45Msps
Demodulation:
DVB-S, QPSK,
DVB-S2, QPSK, 8PSK, 16APSK, 32APSK
FEC:
DVB-S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC support: 1.0, 1.2, 2.x
Интерфейс продукта:
PCI Express
4x LNB IN
система необходимость:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB
пакет Объявлять один:
1 x TBS6904 quad tuner dvb-s2 pci-e card
1 x Power cable
