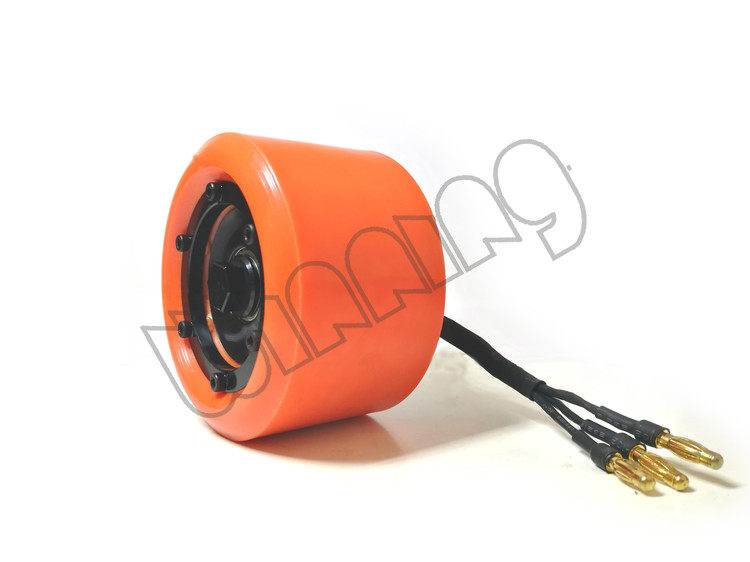

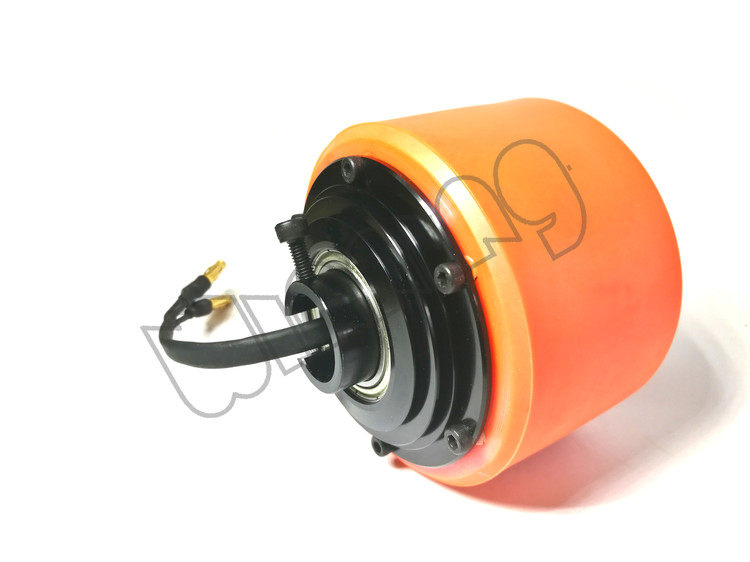

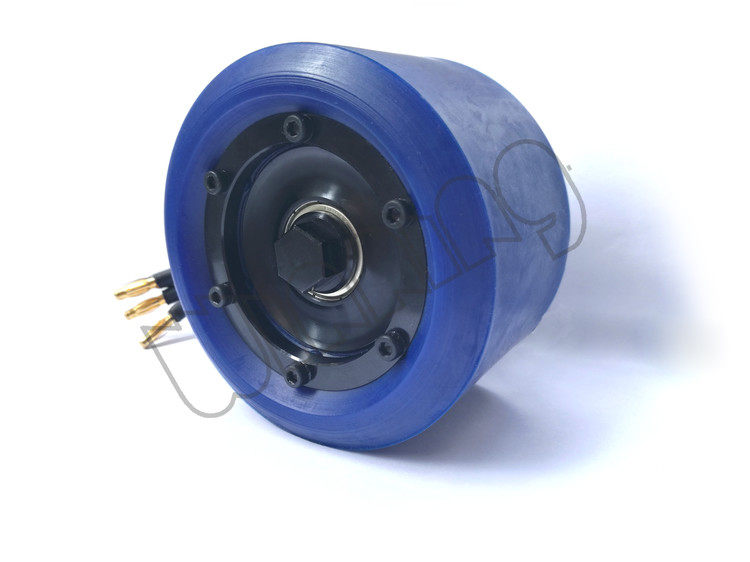

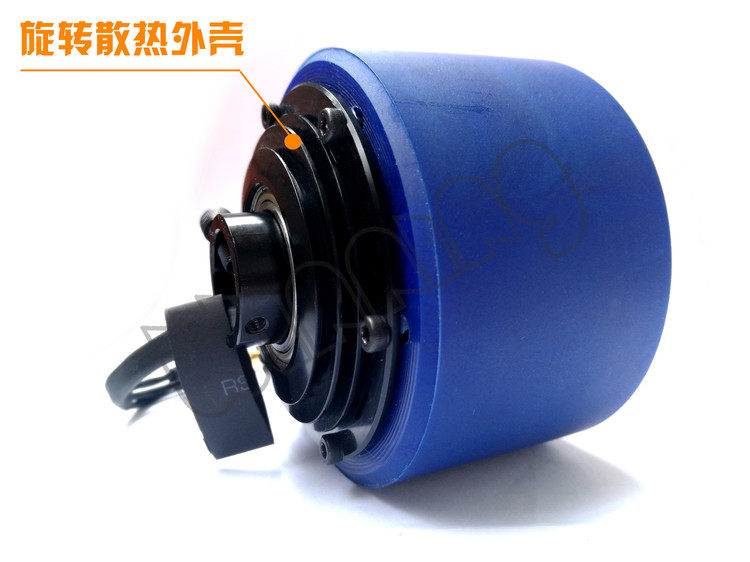

| Motor parameters |
| Motor type | N6364 |
| Motor power | 1800W |
| Sensor type | nothing |
| Out line | black 100mm |
| Assemble | All long board |
| anti-temperature | 150°C-180°C |
| KV | 130 |
| Wheel | 83*52mm, кожзаменитель wear-resistant material, hardness 90A,, can be replaced |
| Color | Orange/blue |
| |
| Performance parameter |
| Speed: | 40KM/H(Depending on the battery type) |
| Load: | 120KG |
| Traffic: | Highway, less than 20 degrees slope |
| Drive: | Double drive, front /back drive (default) |
| Type: | Long-distance motor |
| |

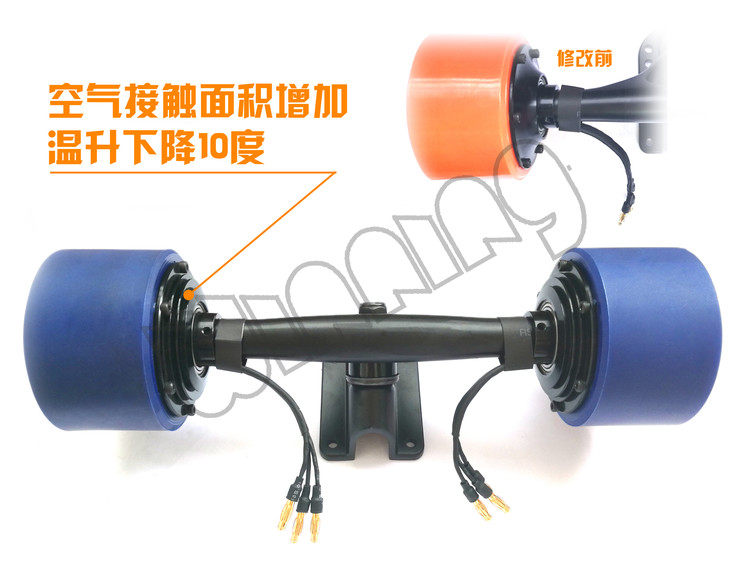

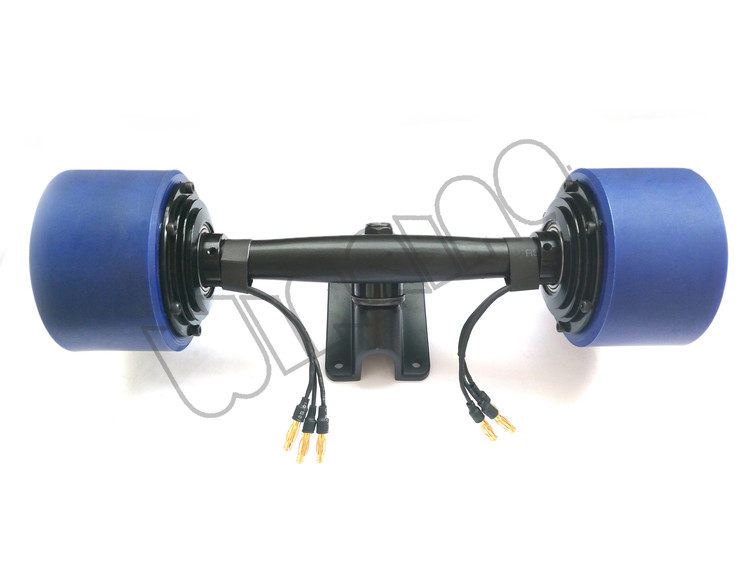

| Dynamic support parameters |
| Wheel | 83*52mm, кожзаменитель wear-resistant material, hardness 90A,, can be replaced |
| Bracket | Aluminum, 7 inch universal, black paint process |
| Install hole: | Outer 4 / inner 4 hole |
| board form: | 36-42 inch all type long board |
| |

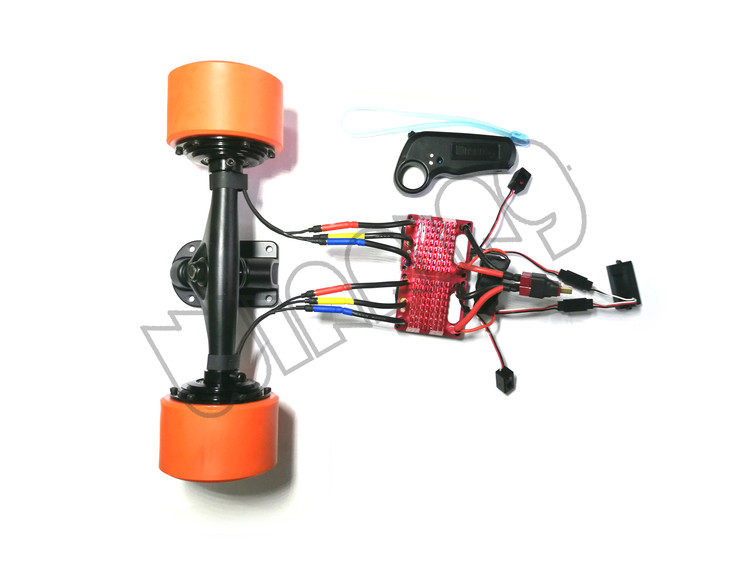

| Remote control parameters |
| Frequency | 2. 4г |
| Channel number | 2PCS |
| Use the battery | Built in lithium battery |
| Application of ESC | all ESC |
| Color | black |
| Dimension | 132*73*65mm |
| |

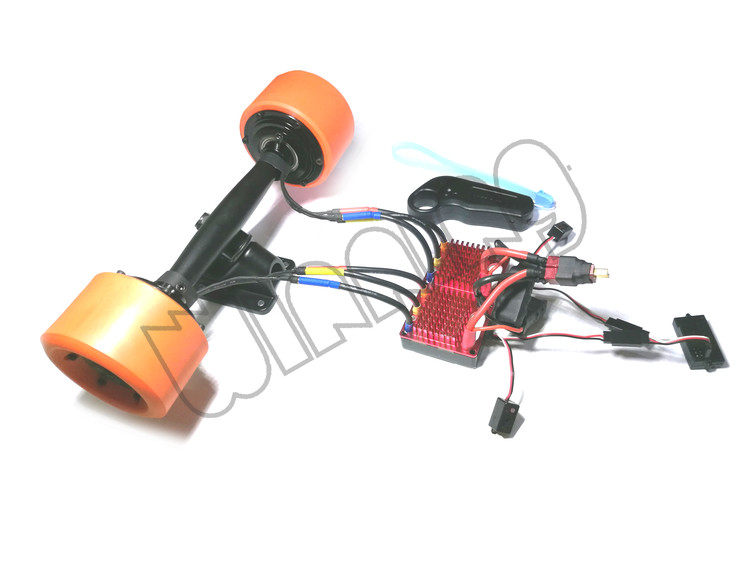

| ESC parameters |
| Specifications | 100A |
| Applicable voltage | 2S-6S, 7,4 В-25 В. |
| BEC Output | 6.0V adjustable/3A |
| Dimension(without fan) | 55*48*25mm |
| Weight(g) | 100g |
| Color | red |
| Number | 2SET |
| |
| Recommended configuration parameters |
| Battery | 18V-25.2V, capacity 5A-15A, discharge rate: 5C-25C |
