Hardware:
C кожзаменитель : Montage VT6000
Memory: 32X16Mbit DDR2 f #400MHz
Flash: 4M bytes
Demodulator Type: M88DM6000
S2 TUNER: M88TS2022
T2 TUNER: MaxLinear MXL 608

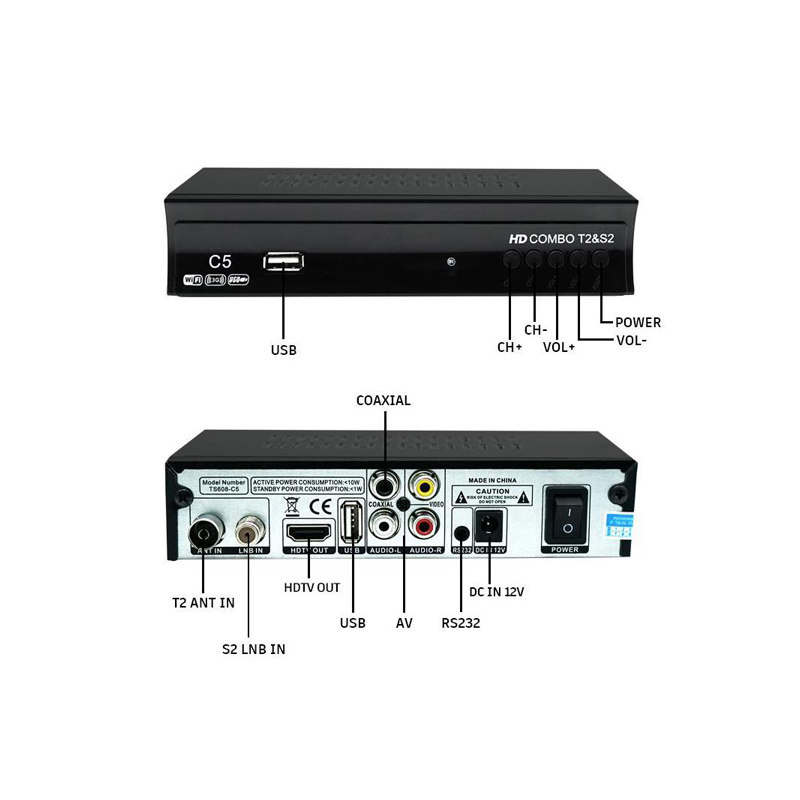

Front Panel: USB 2.0 Embedded One Host,
4-digit LED display on front panel
Red LED Standby,green LED Lock
Panel KEY, POWER, CH+ ,CH-
Rear Panel: S2 LNB IN input connector IEC60169-2
T2 ANT input connector IEC-162-2(IEC Female)
HDMI V1.3
R L V Connector x1
Coaxial x1
Power AC100~240V 50Hz/60Hz
DVB-T2 Demodulation :
Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency 48~866MHZ
Bandwidth6MHz,7MHz,8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/ 8K/32K
Support Single and multiple PLPS
Input level -83~ -5dBm
DVB-S2 Channel Decoder :
Frequency Range 950MHz-2150MHz
Sensitivity Level - 10~ - 81dBm
Mode IFFT 2k,8k
FEC Mode 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals 1/4,1/8,1/16,1/32
Constellation QPSK.8PSK.16APSK.
"Neighboring channels
immunity and Protection" According to ETSI TR 101 190 V1.2.1
Active Ant Power 13/18V DC # 500mA MAX,Overload Protection
Sortware Features
•Fully DVB Compliant and H.264/MPEG-2/MPEG-4/AVS
•Support Full / Blind Search on Single / Multiple Satellites
•Support Auto / Manual Search on Terrestrial Network
•Support DiSEqC 1.0 / 1.1 / 1.2 / USALS / Unicable
•Powerful Service Control by Favorites, Lock, Skip, Move, Rename& Delete
•Support 7-day EPG, Event Recording by EPG
•Support Multi-Language (OSD& Menu)
•Maximum 4000 Service Programmable
•TV System: Auto / PAL / NTSC
•Aspect Mode: Auto / 4:3LetterBox / 4:3PanScan / 16:9
•Video Output Resolution: 480i/576i/480p/576p/720p/1080i/1080P
•Support Audio Description (Thailand Standard)
•Support Teletext, Subtitle
•Support Find / Zoom
•Support Parental Lock
•Support Software Upgrade by OTA/USB
•USB 2.0 Host Support (Time Shift, PVR, MP3 Player& Picture Viewer& Media Player)
Video Decoder
• MPEG2 MP#ML for SD
• MPEG2 MP#HL for HD
• H.264/AVC MP#L3.0 for SD
• H.264/AVC HP#L4.1 for HD
• AVS Jizhun profile #L6.0
• MPEG4 Simple profile # all levels
• MPEG4 Advanced Simple Profile# L5 without GMC, data partitioning and Reversible VLC.
• MPEG4 Xvid1.3.2 without GMC
• MPEG4 DivX without GMC
• MPEG4 H263 baseline profile
Audio Decoder
• MPEG-1 LayerI& Layer II Musicam
• MPEG-2 AAC-LC
• MPEG4 HE-AAC
• AAC 5.1
Powerful Multimedia Features
Media Codec mpeg2, m2ts, ts, avi, mkv, asf, 3g2, 3gp, mp4, mov, flv, f4v, vob, dvix
Audio Codec wav, mp3
Photo Codec jpeg, gif, bmp, png
Accessories:
Gift Box
AV Cable Optional
IR Remote Control
User Manual
Loading:
Loading Machine Size 168*95*37mmmm Packaged size
Machine Weight Packaged weight
Loading for 40GP Loading for 20HQ
