IPC-8600MOVTADHS CCTV 7'' Touch Screen IP Camera CCTV Test AHD TVI CVI SDI Camera Tester Monitor TDR OPM MULTI VFL ONVIF WIFI
Model: IPC-8600MOVTADHS 7" IP CCTV tester monitor IP scan 12V2A output
It supports all functions: analog cameras + IP cameras + HD AHD camera+CVI+TVI+SDI =video display 1080P 720P 960P testing
PTZ control +cable scan +POE power supply+Optical fiber power meter+Visual fault locator+TDR+Multimeter=Full functions
IP camera tester is great CCTV tools for IP camera’s installation and maintenance, both for Analog and IP camera test, built in video level meter, Analog and digital video signal output, IP address scan, Ping test, Port flashing, cable test, Digital Multi-meter, optical power meter and TDR cable tester etc ,easy to operate
7inch wide view Capacitive touch screen/ONVIF/support more than 30 ip cameras image test(hikvision, dahua, Honeywell, Samsung, etc)/mobile client video/12v2A power output/5V2A power bank/ POE power supply/HDMI Output/wifi

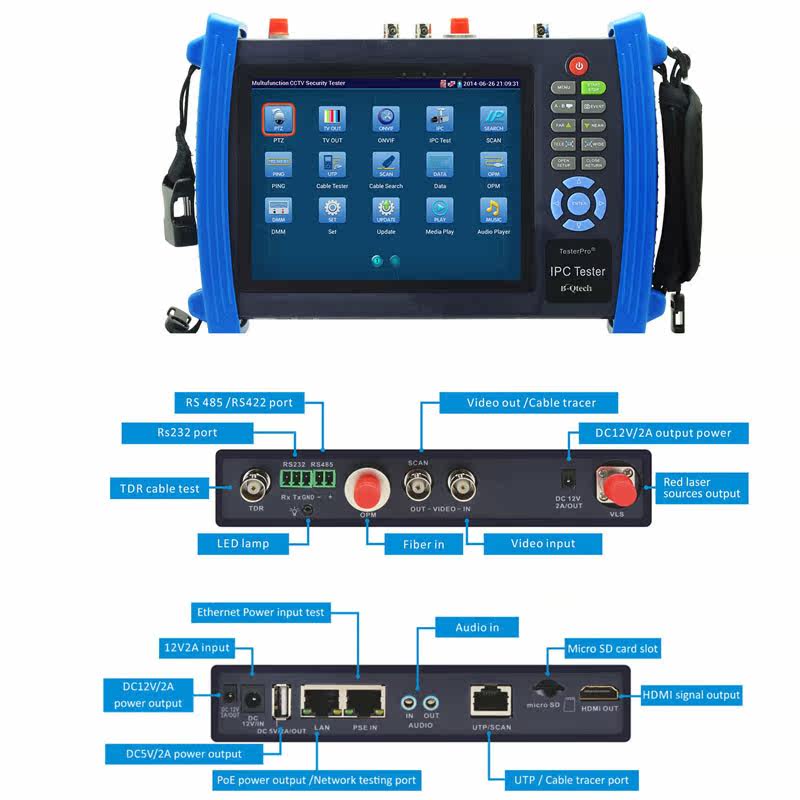

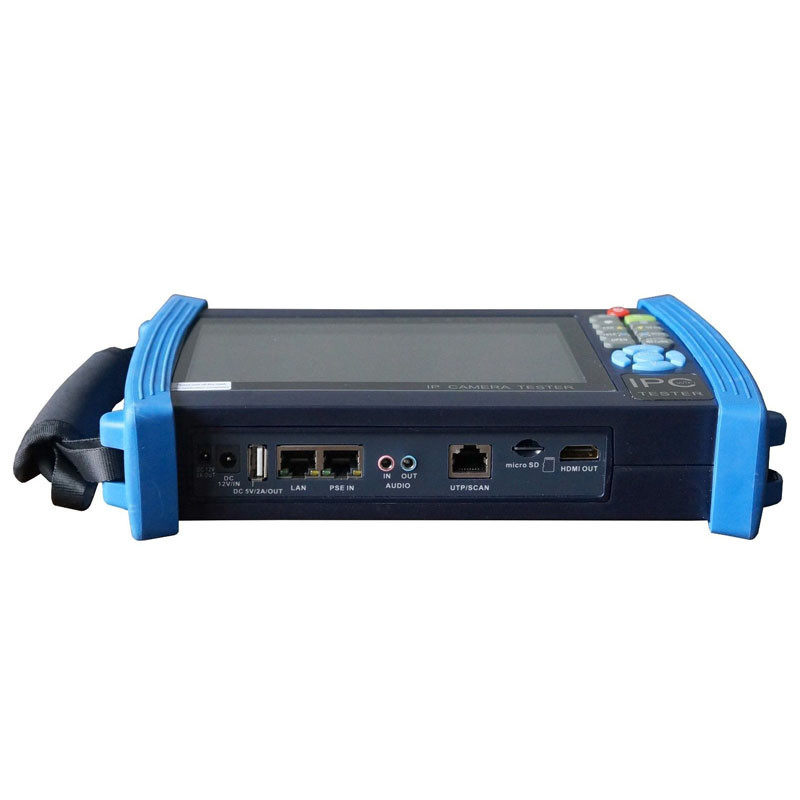

Improved IP camera tester,After charging 7~8 hours, normal working time 16 hours, built in WIFI, test wireless ip cameras.12V 2A power output for camera ,48V PoE power supply,Directly provide PoE power to IP Camera 5V 2A power output(as a power bank 13000mAh),HDMI output;Audio input and output, Network bandwidth testing, image 180 degree rotating,the power and network ports on the top of the tester, easy to connect the cable.
Feature:

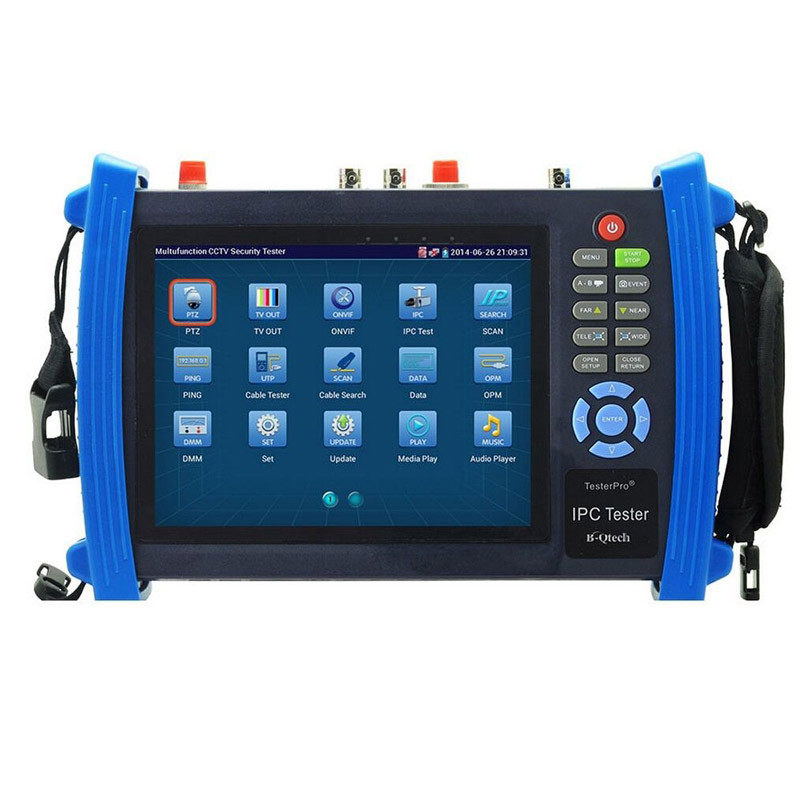

1. 7 inch touch screen,800*600 resolution. NEW
2. Capacitive touch screen ,OSD menu,
3. Touch screen and key operation
4. Built-in WIFI, wireless network camera test NEW
5. Support 1080P HD camera
6. Support ONVIFcamera ,and Support DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera.ect
7. Support running the mobile phone or tablet mobile client software of the IP camera manufacturers.
8. Image can rotate 180 degrees NEW
9. Display real resolution of the IP camera images
10. Video screenshot ,video recording ,files named and save, easy to find NEW
11. Support network PTZ controller (ONVIF)
12. Support 1080P HD video files and MKV/MP4 media files play
13. PTZ controller ,Photograph, Video record, Record playback
14. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement NEW
15. Optical Power Meter, it can measure the optical power value*(Optional)
16. Visual fault locator , to test fiber’s bending and breakage * (Optional)
17. TDR cable test, Digital Multi-meter, optical power meter, and Visual fault locator, etc function ;NEW (Optional)
18. Digital video color bar output, analog video color bar and testing image output NEW (Optional)
19. POE voltage measurement, PING test ,IP address scan, port flashing etc
20. PoE DC48V power output,Max power 24W;NEW
21. 12V /2A power output NEW
22. 5V 2A power output,as the power bank NEW
23. HDMI output, 1920*1080P Resolution;NEW
24. Audio in /out
25. LED lamp, calculators, music players and other application tools
26. Support customers self update software
27. Lithium Ion Polymer Battery, working time lasts 16 hours
Specification:
Model | IPC-8600 models |
Display | 7 inch Capacitive touch screen , resolution 800(RGB)x 600 |
Network port | 10/100M auto adjust,RJ45 |
WIFI | Built in WIFI,speeds150M,receive wireless camera image etc |
IP camera type | ONVIF,ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,Aipu-waton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc. Customized welcome |
Video level test | 1 channel BNC Input& 1 channel Output , NTSC/PAL (Auto adapt) |
Video level meter | PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement |
Zoom Image | Support Analog camera and IP camera image zoom /move |
Snapshots,Video record,
Record playback | Image Screenshots, record ,save ,view and record play back |
HDMI output | 1 channel HDMI output,support 1920*1080P |
12V/2A power output | Output DC12V/2A power for camera |
5V power output | 5V 2A power output,as a mobile phone Power bank |
PoE power output | 48V PoE power output,Max power 24W. |
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
PTZ control | Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
Video Signal Generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
Network color bar generator | Local side PC can login the tester, send the signal by network ,test network connection communication whether normal |
UTP Cable tester | Test UTP cable connection status and display in the screen. Read the number on the screen |
Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
Network test | IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device’s IP address |
Cable scan | Search the cable by the audio signal |
PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
Digital Multi-meter (optional)* | AC/DC Voltage,AC/DC current,Resistance,Capacitance,Data hold,Relative measurement,Continuity testing . Testing speed: 3 times/ seconds,Data range -6600 ~+6600. |
Optical power meter (Optional)* | Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm |
Power range(dBm) :-70~+10dBm |
Visual fault locator (optional)* | Test fiber’s bending and breakage ( SM and MM fiber) |
TDR cable test(optional) * | Breakpoint (cable length) and short circuit measurement(BNC cable, telephone cable) |
POWER |
External power supply | DC 12V 2A |
Battery | Built-in 7.4V Lithium polymer battery ,6500mAh |
Rechargeable | After charging 7~8 hours, normal working time 16 hours |
Parameter |
Operation setting | Capacitive touch screen, OSD menu,Chinese/English |
Auto off | 1-30 (mins) |
General |
Working Temperature | -10 ---+50 |
Working Humidity | 30%-90% |
Dimension/Weight | 231mm x 172mm x 52mm / 1.26Kg |

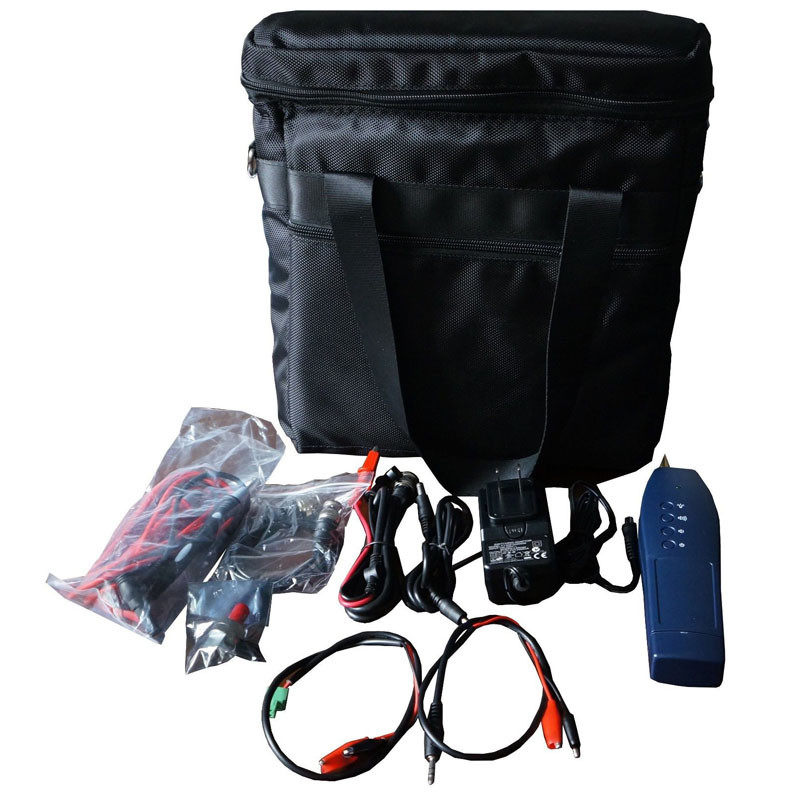

Packing:
1pc* cctv ipc tester
1pc* packing tool bag
all testing accessories included in the bag. 100% original brand testers.
