Тайвань Бесплатный номер слово Приемник DVB-T Телевизионный приемник Автомобильный TV Box высокая Qing 1080p set-top box

Этот продукт DVB-T стандартный Квази номер слово Телевизионная коробка, кантри и тайвань с сигналом DVB-T

Specification

RF Input:UHF:470MHz~862MHz

VHF:174MHz~230MHz

Input Impedance:75Ω

Signal Level:-80dBm~-10dBm

Connector Type:SMA type terminal×2

Channel Band Width:6M/7M/8M

Constellation:QPSK, 16QAM, 64QAM

Guard Interval:1/32, 1/16, 1/8, 1/4

FEC:1/2, 2/3, 3/4, 5/6, 7/8

COFDM Carrier Mode:2K And 8K Non Hierarchical/Hierarchical

Transport Stream:MPEG-4AVC/H.264 HP@L4

MPEG-2 MP@HL/ML

Video Aspect Ratio:4:3/16:9

Video System:PAL/NTSC

Video Output:1±0.3Vpp

Video Resolution YPbPr Resolution:

720*576@25fps/720*480@30fps/HD

1920×1080p/1920×1080i

Audio Decoder:MPEG-2/HE_AAC(DD/DD +optional)

Audio Channel:R/L/ST

Audio Output:1Vpp 47Kohm Adjustable With E Volume

Power Cable And Jack: 4Pins:

1. DC+12~24V Input

2. ACC

3. GND

4.NC

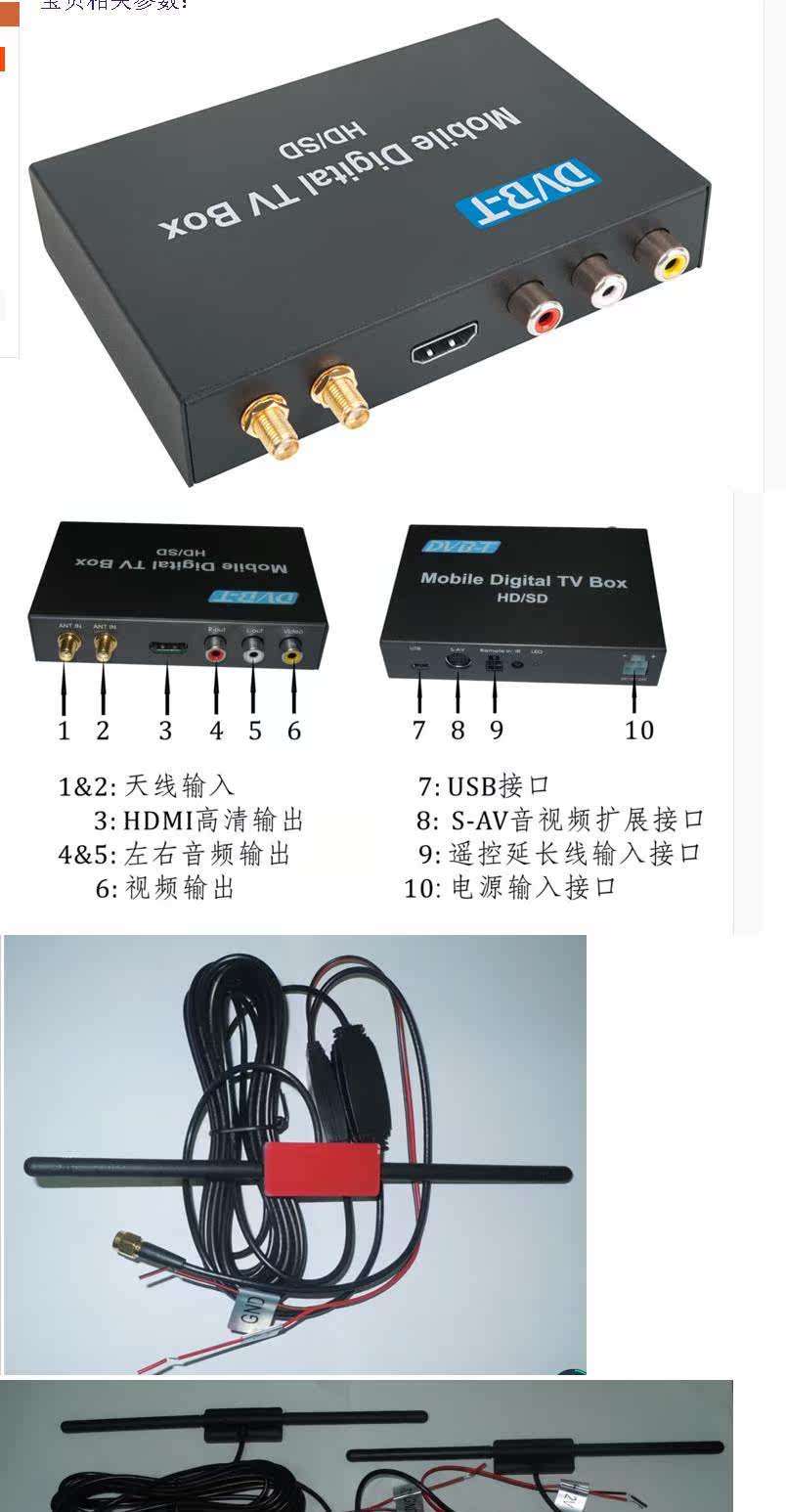

IR Extension Jack:For IR Extension Box

A/V Output Jack:Video RCA Jack×1,Audiop RCA Jack(R/L)×2

Upgrade and Multimedia Port:USB

S-AV connector :

Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)2

Ouput Jack: Video RCA Jack×2

ANT1,ANT2 Input Jack:Female SMA Type

Operating Temperatuer:-10 ° C ~ + 50 ° C

Storage Temperatuer:-40 ° C ~ + 65 ° C

Power Supply:DC+12V~24V±10%

Power Consumption:Running: 4.5W Max.

Standby:<0.85W.

Dimension:25(H)*118(L)*78(W) mm

Main Features

lFully comply with DVB-T Standard

lTwin tuners with diversity structure TV box for high speed driving

lSubminiature appearance, Easy to install

lSpecial design for car using, support high speed above 230km/hours

lSupport MPEG-1, MPEG-2, MPEG-4, H.264 decoder (up to 1920x1080P)

lAudio Decoder:MPEG-2/HE_AAC(DD/DD +optional)

lSupport multi-media format : MPG, MKV, AVI, MOV

lSuper fast hardware decoding of JPEG picture

lDVB subtitling ETSI 300473 compliant and OSD teletext

lSupports multiple OSD languages menu

lEPG (Electronic Program Guide) with now and next and 7 days events

lChannel search with automatic/manual scan

lUSB2.0 host support upgrade, PVR, timeshifting and media play with U-FLASH or HDD

lRCA audio and video input with all the way ,Three ot the RCA audio and video output

lStandby consumption less than 0.85W (True Standby)

Горная пластиковая антенна:

стандартный Так как низ :
