5 inch 8MP IPC Camera Tester AHD CVI TVI CVBS Analog Monitor Test LCD 4K H.265 IP Camera CCTV CAM ONVIF Camera tester Monitor

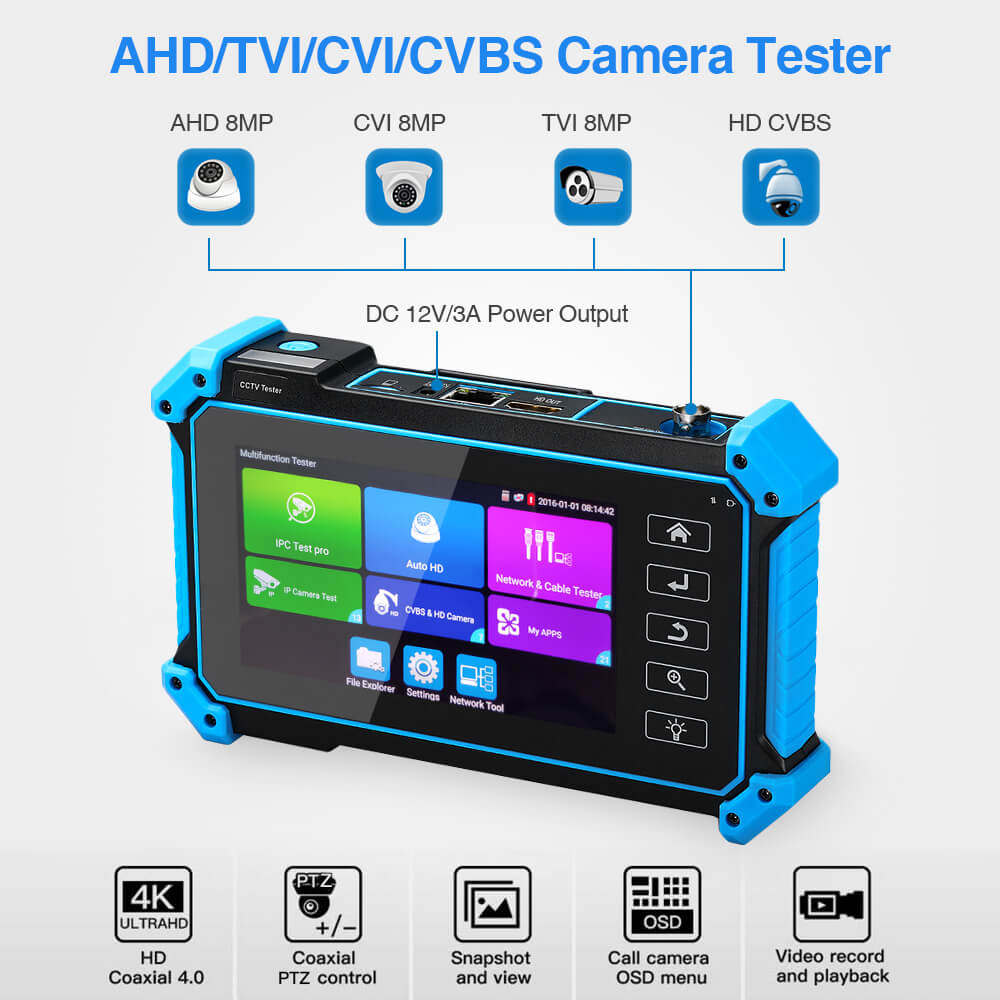

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
\
\Features:

\
• 5 inch IPS touch screen, 1920x1080 resolutions.
\
• 8MP CVI/TVI/AHD camera test.
\
• H.265/H.264, 4K video display via mainstream.
\
• HD Out, support 4K 30FPS.
\
• DC12V 3A, 48V PoE power output.
\
• Rapid ONVIF, Create the test report and modify IP address, etc.
\
• Auto HD, auto recognize HD coax camera type and resolution.
\
• RJ45 TDR cable test, cable quality test.
\
• UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head.
\
• Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot.
\

Specifications:

\
\Package Included:
\
\ 1x IPC5100Plus CCTV Tester
\ 1x 7.4V 3350mAh Li-ion Battery
\ 1x DC Power Cable (US/UK/AU/EU optional)
\ 1x BNC Cable
\ 1x Audio Cable
\ 1x RS485 Cable
\ 1x Wristband
\ 1x Lanyard
\ 1x Hardshell Tool Bag
\ 1x User Manual
