| H96 Max H616 |
| C кожзаменитель | Allwinner H616 Quad CoreARM Cortex A53 |
| G кожзаменитель | G31MP2 Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0 |
| Memory | 2GB/ 4г BDDR3L |
| Flash | 16G/32GB/6 4г BeMMC |
| WiFi/BT | 2. 4г Hz+5GHz with BT4.0 |

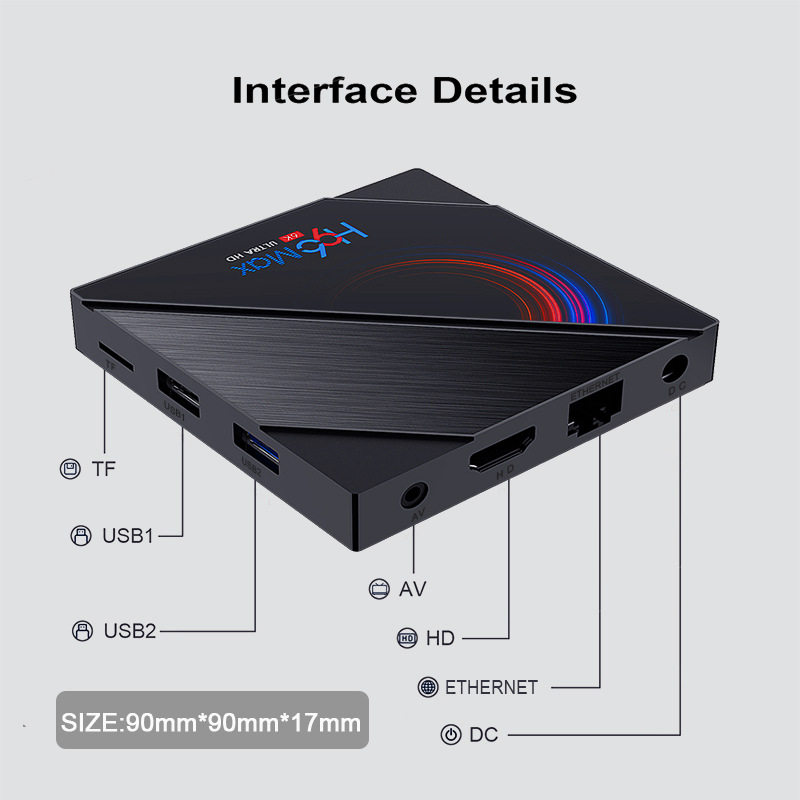

| I/O | 1*HDMI | HDMI 2.0a up to 4K@60fps |
| 1*AV OUT | 480i/576i standard definition output;CVBS output, supporting PAL/NTSC |
| 2*USB | 2* USB 2.0 ; |
| 1*IR Reciver | Remote Reciver Connect |
| 1*RJ45 | Ethernet Interface;Support 10/100M |
| 1*TF Card | Support 4г B/8GB/16GB/32GB/6 4г B |
| OS | Android 10.0 |
| Power | DC 5V/2A Power ON :blue |
| Support | Support USB,pre-install APK |
| Certification | CE,Rohs,Fcc and Health test reports ,safe shipment reports,etc... |
| Accessories | Power Adapter,HDMI cable,AV cable,Remote controller,Gift box |
| Language | English French German Spanish Italian etc multilateral languages |
| Image | JPG,JPEG,BMP,GIF,PNG,TIF |
| Video | ?8?6Video Engine (AVE) with dedicated hardware decoders and encoders
?8?6Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
?8?6Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
?8?6Video Decoding
- VP9 Profile 2 up to 4Kx2K@60fps
- H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps
- H.263 BP up to 1080P@60fps
- MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496)
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- Xvid up to 1080P@60fps
- Sorenson Spark up to 1080P@60fps
- VP8 up to 1080P@60fps
- AVS/AVS+ JiZhun Profile up to 1080P@60fps
- WMV9/VC1 SP/MP/AP up to 1080P@60fps
- JPEG HFIF file format up to 45MPPS
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Audio Codec
-Two audiio digital-to-analog(DAC) channels
-Support 16-bit and 20-bit sample rate
-8kHz to 192kHz DAC sample rate
-95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
-One128*24-bits FIFO for DAC data transmit
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Packing | Product dimension | 90mm*90mm*17mm |
| Qty per unit packing | 1pc |
| Unit packing: (LxWxH) | 173*103*65mm |
| Unit packing (G.W.) | 300g |
| Qty per export carton | 20PCS |
| Export carton (WxHxL) | 365*345*220mm |
| Export carton (G.W.) | 6.4KG |

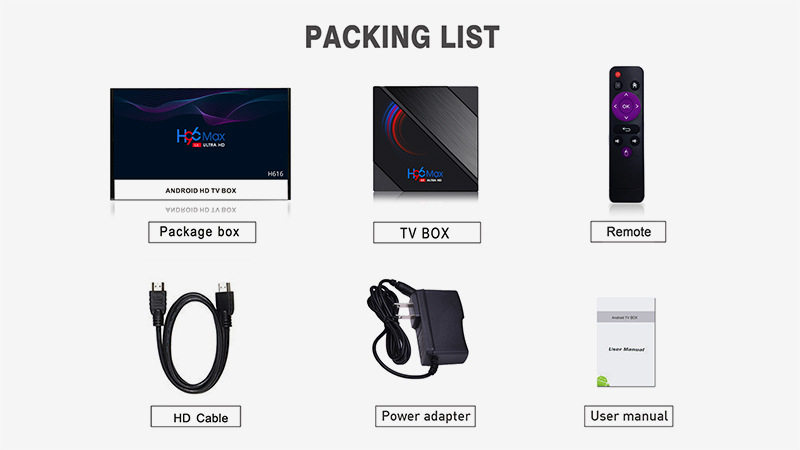

| Аксессуары: |
| 1. Кабель HDMI * 1 |
| 2. ИК-пульт * 1 |
| 3. Руководство пользователя * 1 |
| 4. Пакетная коробка * 1 |
5. Адаптер питания * 1
|
